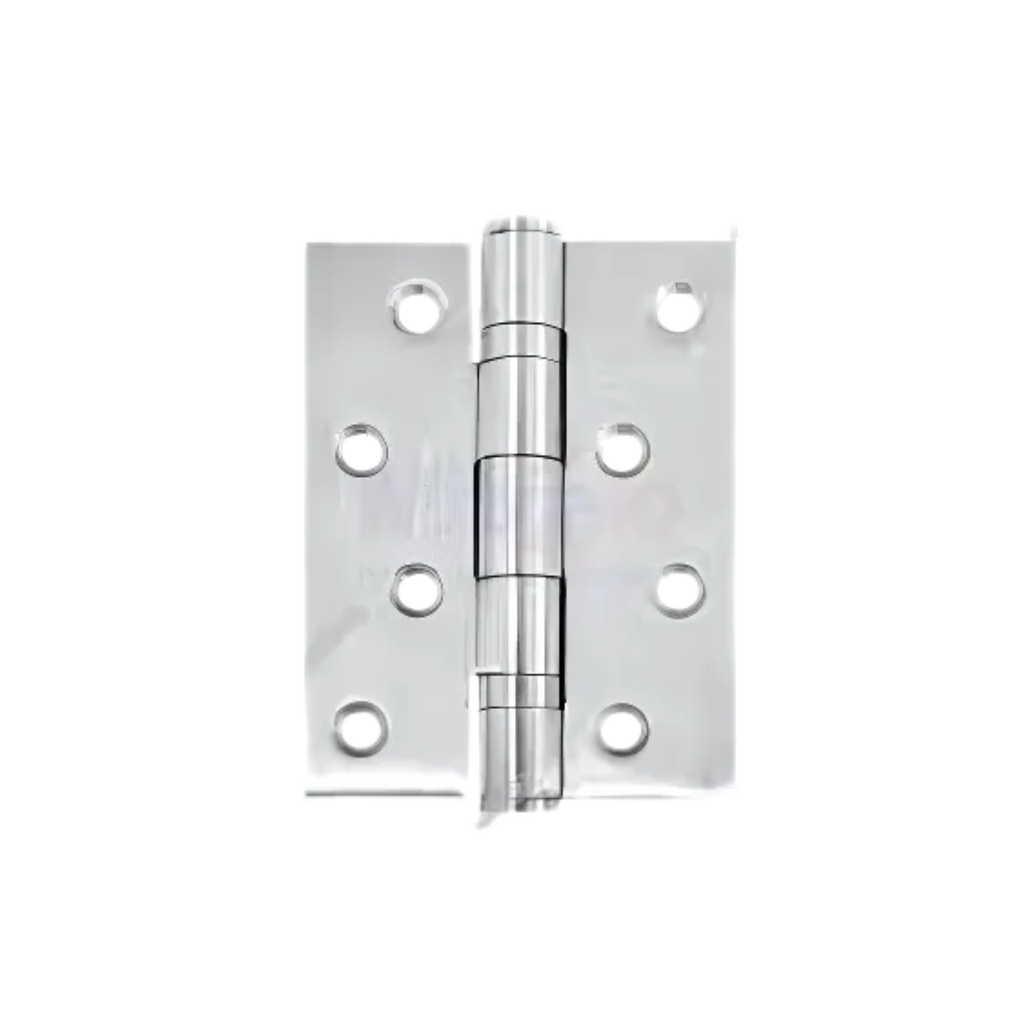

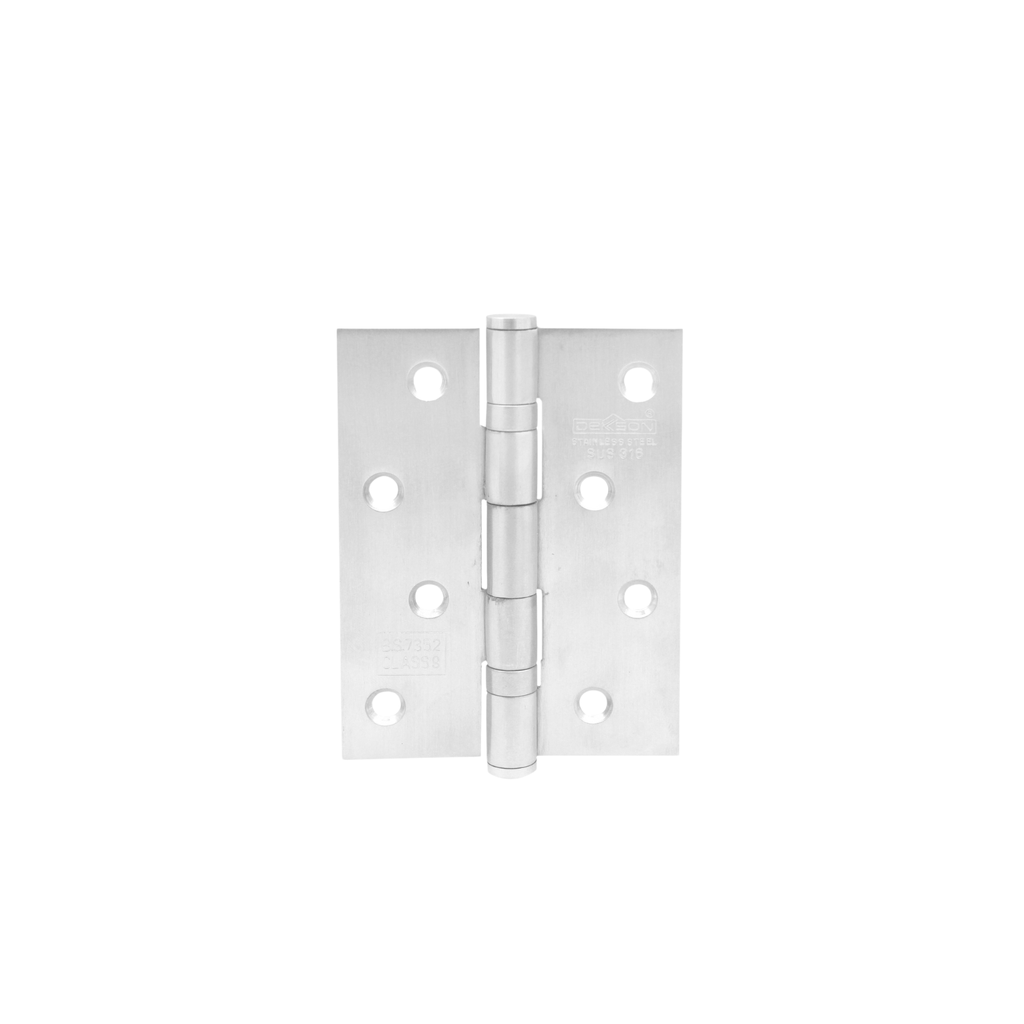

The Dekkson SUS 316 series is a superior butt hinge range crafted from SUS 316 stainless steel, providing exceptional resistance to corrosion, salt, and humidity. Designed for long-term performance in coastal or high-moisture environments, these hinges ensure smooth, stable door operation even under heavy loads.
Key Features:
High Load Capacity:
• 102 × 76 × 2 mm – 40 kg / pair
• 102 × 76 × 4 mm – 80 kg / pair
• 127 × 76 × 4 mm – 90 kg / pair
• 152 × 89 × 4 mm – 100 kg / pair
• 203 × 102 × 4 mm – 120 kg / pair
Non-Removable Pin (NRP) Design: Prevents unauthorized removal and increases door security.
Ball Bearing Construction: 2 BB, 4 BB, or 6 BB options ensure smooth, silent operation and extended hinge life.
Finish: Satin Stainless Steel (SSS) – resistant to tarnish and ideal for architectural applications.
Applications: Perfect for high-end villas, commercial buildings, resorts, and marine-exposed structures where superior durability and corrosion resistance are essential.
Combining marine-grade strength, precision engineering, and refined aesthetics, the Dekkson SUS 316 series offers the ultimate hinge solution for demanding environments and luxury installations.
